Update:
Below, see screen-captures of 4 instances of Amp View. I was on 20 meters as I was yesterday. Today, the Amp View looks better than it did yesterday.....
Not sure why that is
.
The first 2 when I used my Solid State RF2K-S amplifier, with around 1,400W out.
It appears that when I use SSB for the "Lock", just speaking normally into the mic, with ALC Group hitting a little above 0dB, the curves look more "regular" than when I use 2 TONE.

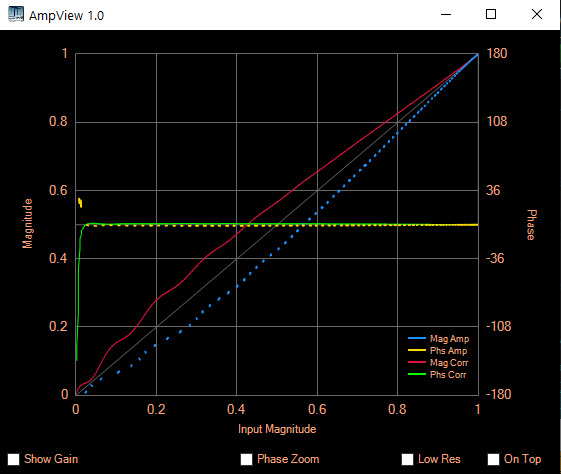

- AmpView 2 Using SSB Only for Lock.jpg (54.18 KiB) Viewed 4146 times

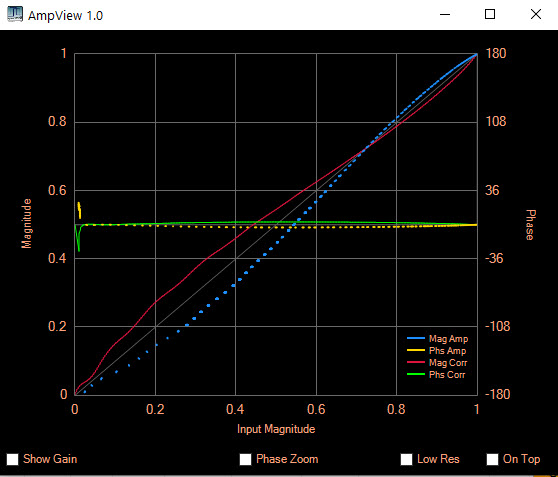

- AmpView 3 Using 2TONE for Lock.jpg (55.85 KiB) Viewed 4146 times
Below, see Amp Views when I used the internal sampler in the ANAN 7000 DLE MKII ("RX Bypass on TX" box was unchecked), putting out a little shy of 50W.

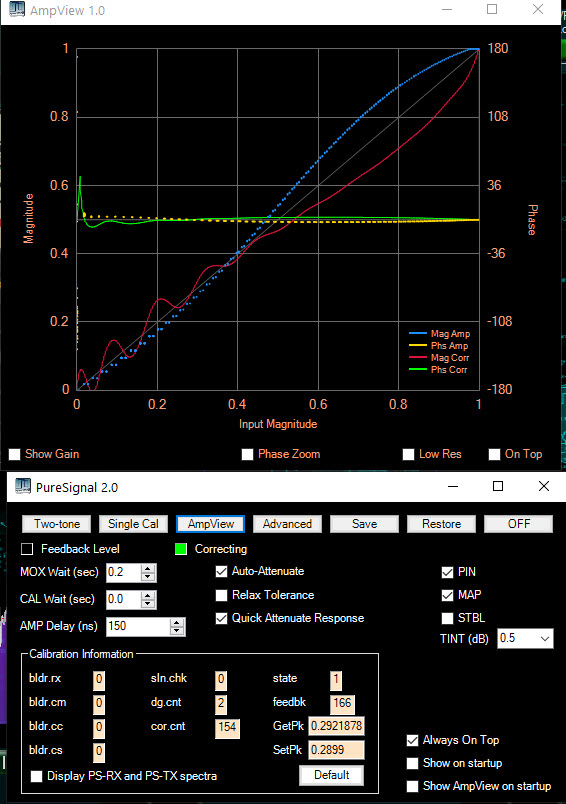

- AmpView 2 Using SSB Only for Lock.jpg (54.18 KiB) Viewed 4146 times

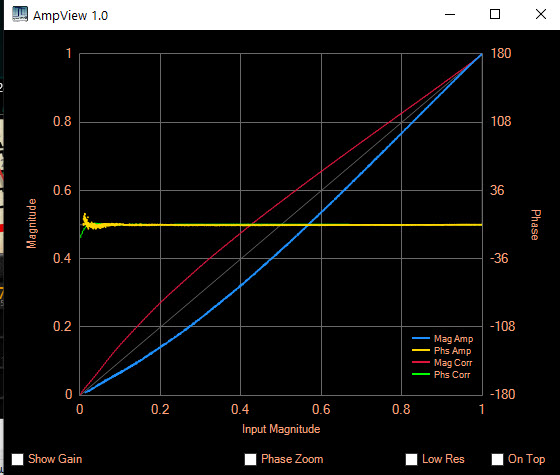

- Amp View 5 Internal Sampler 2TONE for Lock.jpg (55.32 KiB) Viewed 4146 times
Here again, the curves in the AmpView look more "regular" when using an SSB signal to achieve "Lock."
Could the "discrepancy" between the curves in the AmpView be a "tell", indicating potential, or latent failure in one (both) of the finals inside the ANAN 7000 DLE MKII? I know that this was the case in the radio of a friend of mine (if you want to jump in and comment, please do
). The curves in the AmpView that I posted yesterday looked very similar to what he saw and he ended up shipping his radio to Doug. While he was at it, both finals were replaced as per request by my friend. Those replacements made, AmpView and Pure Signal have worked out well.
I also note that the correction "(Mag Corr") curve
when using 2TONE for "Lock" (when using
both the external RF sampler and internal RF sampler) is not a mirror image of "Mag Amp"). Like Pure Signal was "correcting" for a magnitude "glitch" that wasn't there. What does that tell you?
Look forward to comments and/or advice!
Juha
NI2M
